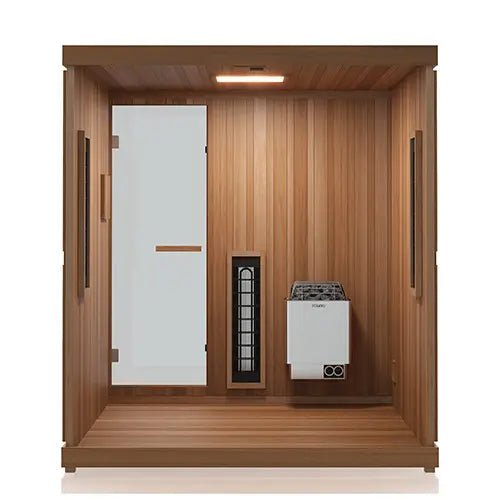

Finnmark FD-5 Trinity XL - Product Details
  • Product Description
  • What's Included
  • Key Features
  • Specifications
  • Warranty

The Ultimate Home Wellness Sanctuary

The Finnmark FD-5 Trinity XL is an industry-leading hybrid sauna that merges three distinct therapies into one spacious 4-person cabin. Whether you want the deep detox of infrared, the intense 190°F heat of a Finnish sauna, or the skin-rejuvenating benefits of red light, the Trinity XL delivers it all without compromise.

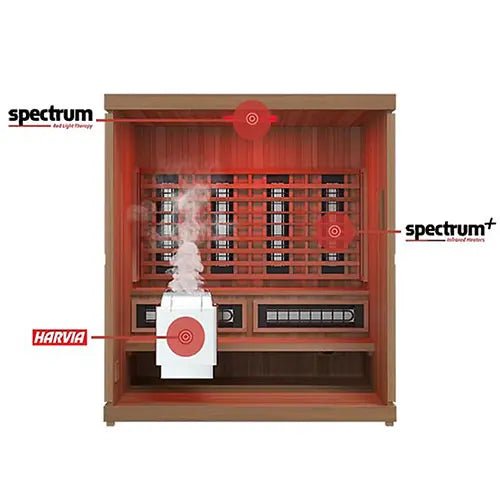

The Power of 3 Therapies in One

1. Full-Spectrum Infrared (Spectrum Plus™ & Carbon)
A combination of Spectrum Plus™ Short-Wave heaters and Spectrum Carbon 360° Long-Wave panels. The UL-listed short-wave heaters penetrate deep into muscles (25x deeper than standard carbon) for pain relief, while the large carbon panels surround the cabin to efficiently raise core body temperature for a profound, healthy sweat.

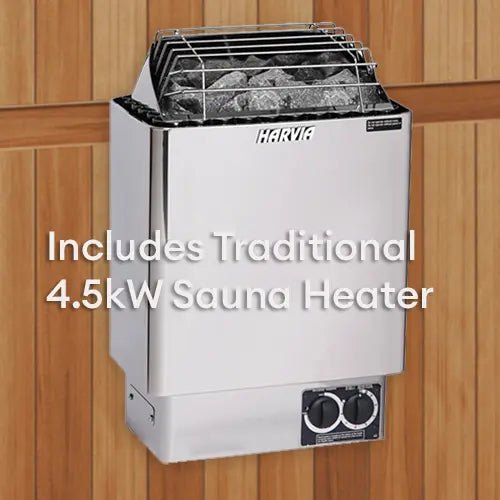

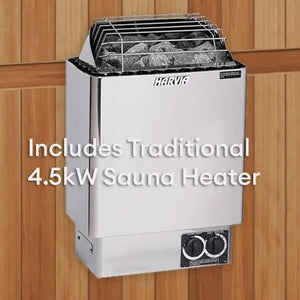

2. Traditional Steam Sauna (Harvia KIP 4.5kW)
Includes a robust Harvia KIP 4.5kW stainless steel heater. Splash water on the 50 lbs of included vulcanite stones to create authentic steam (löyly), creating varying humidity levels and high temperatures up to 190°F.

3. Medical-Grade Red Light Therapy
A dedicated Spectrum Red Light™ panel utilizes 192 medical-grade LEDs to produce therapeutic 650nm red light. This supports collagen production, reduces inflammation, and improves skin tone while offering full-color chromotherapy for mood enhancement.

What's in the Box?

  • Prefabricated Cedar/Aspen Panels (Top, Bottom, Front, Back, Sides)
  • Infrared Heater Panels (Spectrum Plus & Carbon)
  • Harvia KIP 4.5kW Heater (Stainless Steel)
  • 1 Box of Harvia Sauna Stones (50 lbs / AC3000)
  • Medical-Grade LED Red Light Panel
  • Glass Door with Handle
  • Interior Benches (Two-Tier) & Floor Grid
  • LCD Touchscreen Controller & Power Supply Unit
  • Installation Hardware & Manual

⚠️ IMPORTANT: Electrical Requirements

This unit requires TWO separate electrical connections to operate:

  • Connection 1 (Infrared/Lights/Control): 240V / 15 Amp dedicated circuit (Plug: NEMA 6-15P).
  • Connection 2 (Harvia Heater): 240V / 20 Amp dedicated circuit (Hardwire connection required by electrician).

Key Features

Spacious 4-Person Design Extra-large interior with a comfortable two-tier bench system allows multiple users to relax or one person to stretch out fully.
Premium Hybrid Construction Antimicrobial Western Red Cedar interior resists mold and odors, while the Thermal Plus™ Canadian Aspen exterior prevents rot and warping.
Smart Control System Built-in LCD Touchscreen Controller 5.0 manages infrared heat, lighting, and sound, featuring Bluetooth audio connectivity.
Immersive Audio Premium 6" HiFi marine-grade speakers provide crystal-clear sound for your relaxation playlist.
Medical-Grade Red Light Features 192 LEDs producing 650nm red light for skin rejuvenation and inflammation reduction.
Safety First Low EMF certified, non-toxic wool insulation, and 8mm tempered glass ensure maximum heat retention and safety.

Technical Specifications

Model: Finnmark FD-5 Trinity XL

Dimensions (Exterior) 75" W x 64" D x 83" H
Dimensions (Interior) 71" W x 57.5" D x 75.5" H
Capacity 4 Person
Heater 1 (Infrared) 2700W Spectrum Plus™ & Carbon
Heater 2 (Traditional) Harvia KIP 4.5kW Electric Heater
Max Temperature IR: 170°F | Traditional: 190°F
Weight 575 lbs (Assembled)
Electrical: Infrared 240V / 15 Amp (NEMA 6-15P Plug)
Electrical: Traditional 240V / 20 Amp (Hardwire Required)

*Please consult a licensed electrician to ensure your home meets the dual power requirements.

Warranty Information

The Finnmark FD-5 Trinity XL is backed by a comprehensive warranty to ensure your peace of mind.

Coverage Period 2-Year Limited Warranty (Consumer Use)

Coverage Includes:

  • Protection against defects in materials and workmanship.
  • Coverage for heater components (Infrared and Traditional).
  • Electronics and Control panels.

Note: Warranty is valid for consumer/residential use only. Professional installation recommended.
